Cheaper as a bundle
Description

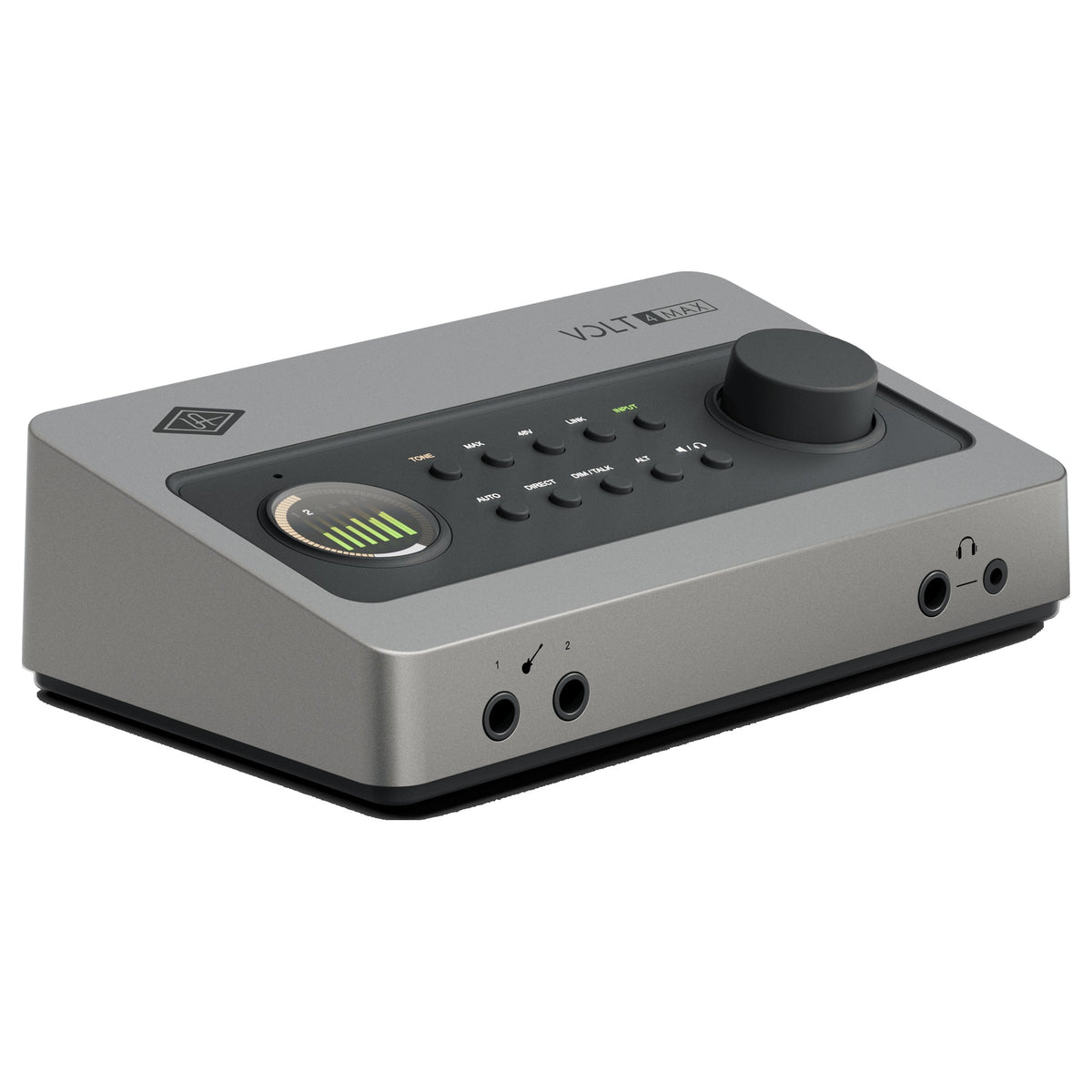

Universal Audio Volt 4 Max – Max Compression with Speaker Switching
Volt 4 Max builds a small control room around two Tone Shaping Preamps: Max Processing compression, Main/Alt speaker switching, talkback, two headphone outputs, extra line I/O, ADAT, MIDI and a USB hub, with a power supply in the box. At Soundium it is the Volt for producers who mix on two pairs of monitors.
Key Features
- Tone Shaping Preamp: Three switchable characters per channel: Warmth (tube, 610-inspired), Focus (American solid state) and Shine (British Class-A)
- Max Processing: Six onboard compressor presets based on the 1176, LA-2A and VCA designs, tuned for vocals, guitar and bass
- Main and Alt Speaker Switching: Check mixes on a second pair of monitors at the push of a button
- Built-In Talkback Mic: Communicate with the performer between takes
- 12-in / 6-out with ADAT: Line inputs 3-4 plus 8 optical channels for outboard gear and expansion

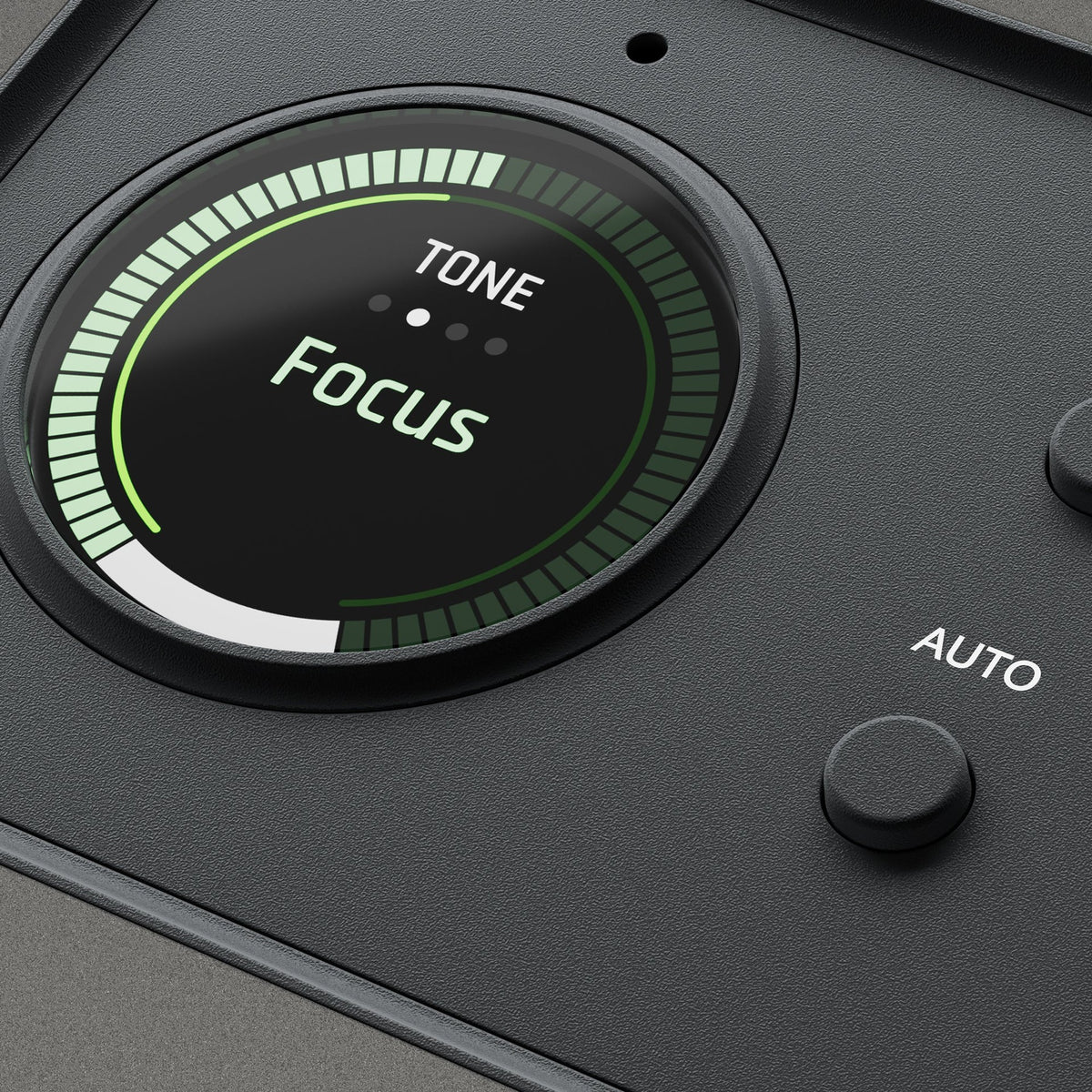

- Smart Display: Gain-reduction metering, Auto-Gain and Clip Protection
Customer Benefits
Speaker switching, talkback and dual headphones are features you normally buy a separate monitor controller for. Here they sit next to preamps with tone and compression, so a desk setup can record, monitor and check mixes from one unit. The included supply keeps everything stable with a powered USB controller on the hub.
Quick Specs
- Simultaneous I/O: 12-in / 6-out
- Mic preamps: 2, 60 dB gain, Tone Shaping + Max compression

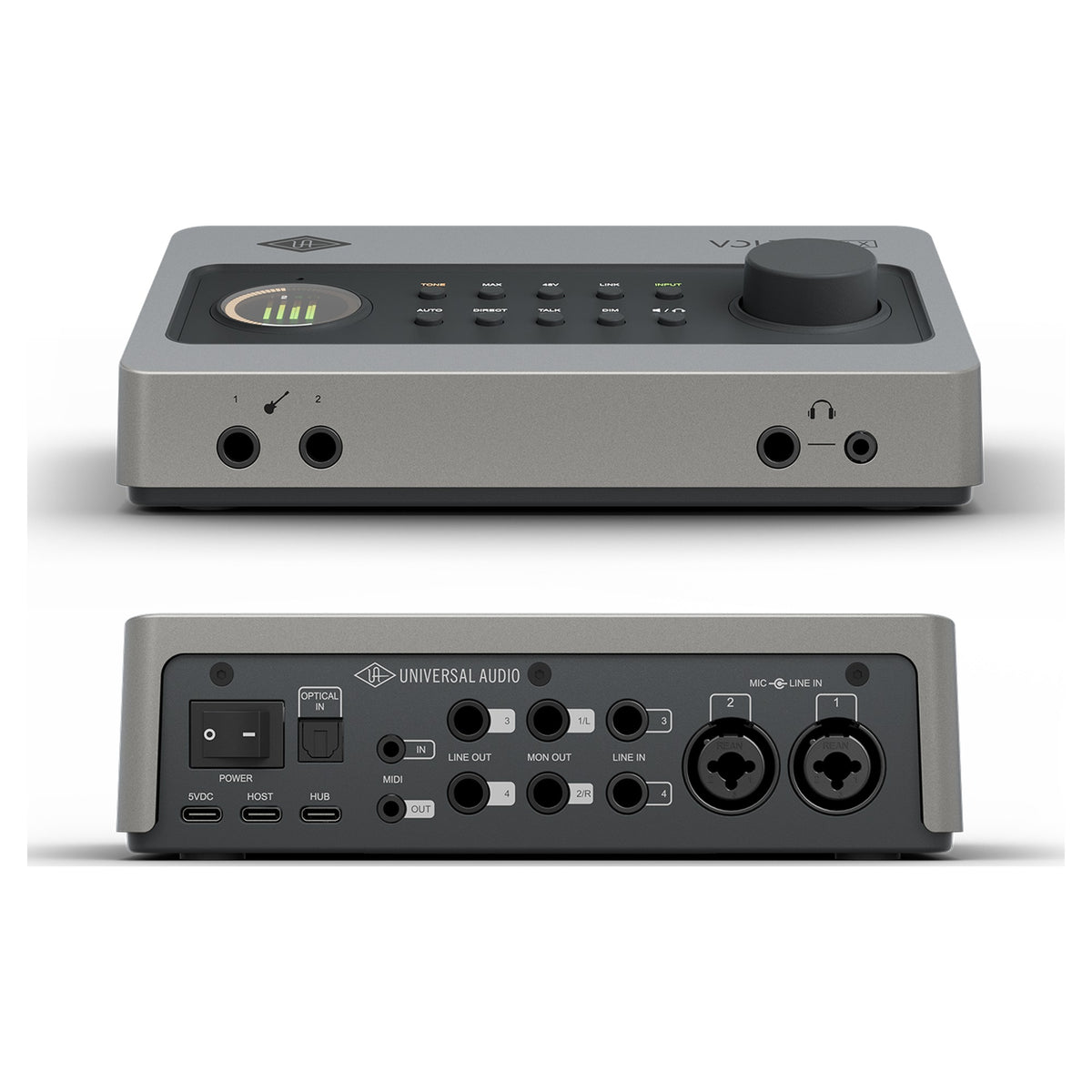

- Inputs: 2x XLR/TRS combo (mic/line), 2x 6.3 mm Hi-Z inst (front), 2x 6.3 mm TRS line 3-4, ADAT/S/PDIF optical, MIDI in, talkback mic
- Outputs: Main + Alt monitor pairs (6.3 mm TRS), 2x headphone (6.3 mm + 3.5 mm), MIDI out
- Conversion: 32-bit / 44.1 to 192 kHz
- Dynamic range: 119 dB (mic in), 126 dB (monitor out)
- Connection: USB-C (USB 2.0), USB-C hub port (5 V / 0.5 A), USB-C power input
- Power: Bus-powered or included 3 A supply, 5.5 W typical; rear power switch
In the Box
- Universal Audio Volt 4 Max
- USB-C to USB-C cable
- USB power supply (5 V / 3 A)
- UAD Volt Studio Bundle: LUNA, Topline Vocal Tune, UA 610 Tube Preamp & EQ Collection, Teletronix LA-2A, UA 1176, Pure Plate Reverb, PolyMAX and Anthem synths, UAD Lion '68 and Showtime '64 amps, plus Melodyne Essential, Ampeg SVT-VR Classic Bass Bundle, UJAM Virtual Drummer DEEP and Virtual Bassist DANDY, Splice INSTRUMENT, UVI Prisma Producer Lab and 3 months of FL Studio Producer Edition
Ideal For
- Producers mixing on two monitor pairs
- Home studios recording guests
- Hybrid rigs with synths and outboard
Compatibility
Class-compliant on macOS 12 or newer, iPadOS / iOS 16 or newer (USB-C, or Lightning via Camera Adapter) and Windows 10 64-bit or newer with the UA ASIO driver. Works with Ableton Live, Logic Pro, Pro Tools, FL Studio and every other major DAW.
Pros & Cons
✅ Pros:
- Monitor controller features built in
- Max compression and Tone Shaping on both preamps
- Power supply included
⚠️ Cons:
- Still 2 mic preamps; four mics need Volt 4P Max or ADAT
- Larger desktop footprint than the Gen 2 models
Volt 4 Max replaces a small pile of desk boxes with one interface. It is available at Soundium beside the four-preamp Volt 4P Max.
Details & Specifications
Everything technical about this product: specifications, what's in the box and downloads.
General 8
| Brand | Universal Audio |
|---|---|
| Product type | Audio Interface |
| Interface features | Phantom power, Direct monitoring, MIDI, Loopback, Bus powered, Class compliant, iOS / mobile compatible, Talkback, Built-in Microphone, Onboard DSP / effects |
| Intended use | Music Production, Home Studio, Podcasting / Streaming |
| Form factor | Desktop |
| Power source | USB |
| Maximum resolution | 32-bit / 192 kHz |
| Compatibility | macOS, Windows, iOS/iPadOS |
Audio 4
| Maximum bit depth | 32-bit |
|---|---|
| Mic preamps | 2 |
| Input channels | 12 |
| Output channels | 6 |
Connectivity 6
| Connectivity | USB |
|---|---|
| Inputs | 2x XLR/TRS combo (mic/line), 2x 6.3 mm Hi-Z inst, 2x 6.3 mm TRS line, ADAT/S/PDIF optical in, MIDI in |
| Outputs | 4x 6.3 mm TRS line (Main/Alt), 2x headphone (6.3 mm + 3.5 mm), MIDI out |
| Computer connection | USB-C (USB 2.0) |
| Device interface | Headphone Out, Line Out, USB (Audio) |
| Audio output format | Analog, Digital |
Dimensions & weight 2
| Dimensions | 18.1 × 11.5 × 5.4 cm |
|---|---|
| Weight | 0.6 kg |
Warranty 1
| Warranty | 3-Year |
|---|
Sources: Manufacturer data
Shipping and returns
Free shipping Shipping from €4
30-day returns
3-year warranty
Price match
Pay in parts
Universal Audio Volt 4 Max€399,00
| Universal Audio Volt 2 Max€299,00
| Universal Audio Volt 4P Max€499,00
| Universal Audio Volt 4 Gen 2€279,00
| |
|---|---|---|---|---|
| General | ||||
Product type |
Audio Interface
|
Audio Interface
|
Audio Interface
|
Audio Interface
|
Price |
€399,00 |
€299,00 |
€499,00 |
€279,00 |
Barcode |
819937005244
|
819937005237
|
819937005251
|
819937005220
|
Brand |
Universal Audio
|
Universal Audio
|
Universal Audio
|
Universal Audio
|
Rating |
|
|
|
|
Warranty |
3-Year
|
3-Year
|
3-Year
|
3-Year
|
Availability |
|
|
|
—
|
| Specifications | ||||
Color |
Gray
|
Gray
|
Gray
|
Black
|
Connectivity technology |
USB
|
USB
|
USB
|
USB
|
Power source |
USB
|
USB
|
USB
|
USB
|
Dimensions |
|
|
|
|
Weight |
|
|
|
|
Max resolution The highest digital audio quality the device can process, e.g. PCM 384 kHz/32-bit or DSD 11.2 MHz. Anything above 96 kHz/24-bit already exceeds hi-res streaming and downloads.
|
|
|
|
|
Inputs |
|
|
|
|
Outputs |
|
|
|
|
Form factor |
Desktop
|
Desktop
|
Desktop
|
Desktop
|
Computer connection |
|
|
|
|
Input channels Total channels the interface can record at once, analog plus digital (ADAT, S/PDIF). Compare with how many sources you track simultaneously.
|
|
|
|
|
Output channels Total playback channels, analog plus digital. More outputs allow separate headphone mixes, extra monitor pairs and outboard gear routing.
|
|
|
|
|
Mic preamps Number of XLR/combo inputs with a built-in microphone preamp. This sets how many microphones you can record at the same time without extra preamps.
|
|
|
|
|
Compatibility |
|
|
|
|
Features |
Phantom power, Direct monitoring, MIDI, Loopback, Bus powered, Class compliant, iOS / mobile compatible, Talkback, Built-in Microphone, and Onboard DSP / effects
|
Phantom power, Direct monitoring, MIDI, Loopback, Bus powered, Class compliant, iOS / mobile compatible, Talkback, Built-in Microphone, and Onboard DSP / effects
|
Phantom power, Direct monitoring, MIDI, Loopback, Bus powered, Class compliant, iOS / mobile compatible, Talkback, Built-in Microphone, and Onboard DSP / effects
|
Phantom power, Direct monitoring, MIDI, Loopback, Bus powered, Class compliant, and iOS / mobile compatible
|
Audio purpose |
Music Production, Home Studio, and Podcasting / Streaming
|
Music Production, Home Studio, and Podcasting / Streaming
|
Music Production, Home Studio, and Podcasting / Streaming
|
Music Production, Home Studio, and Podcasting / Streaming
|
