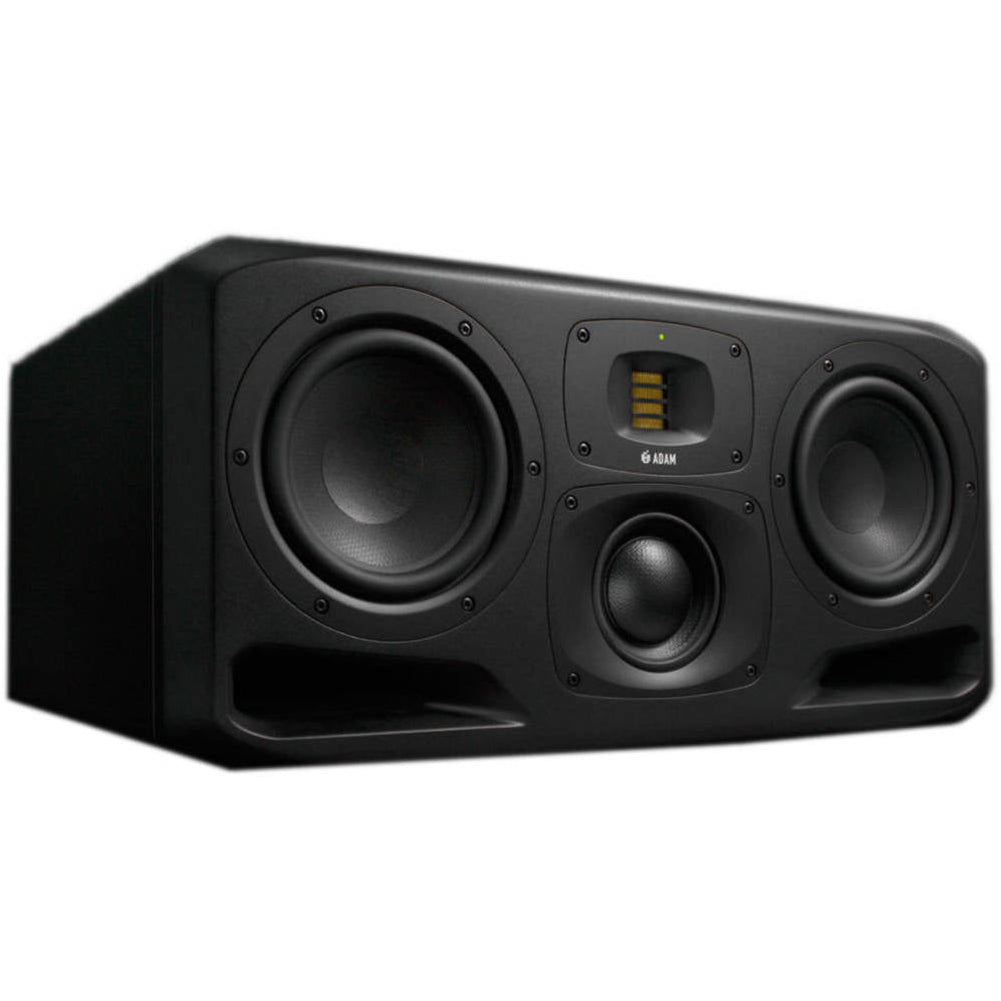

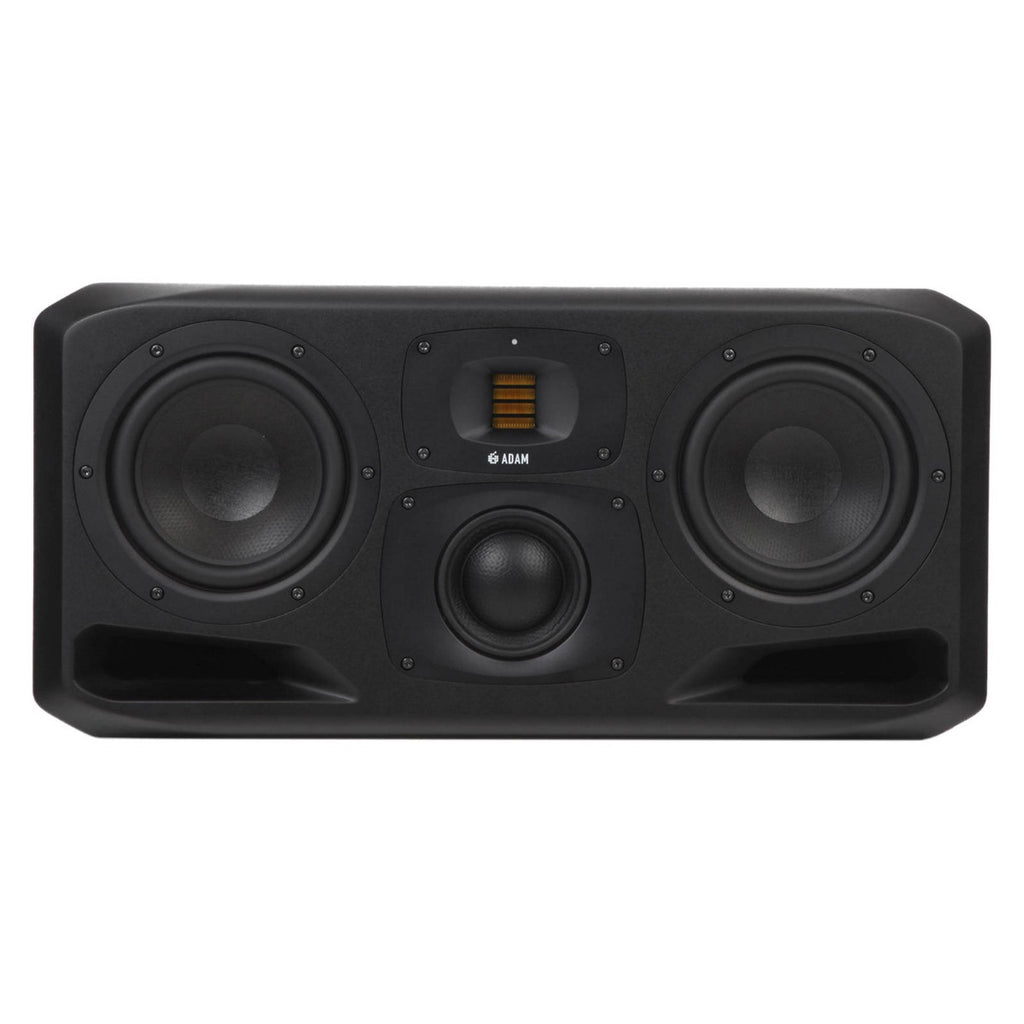

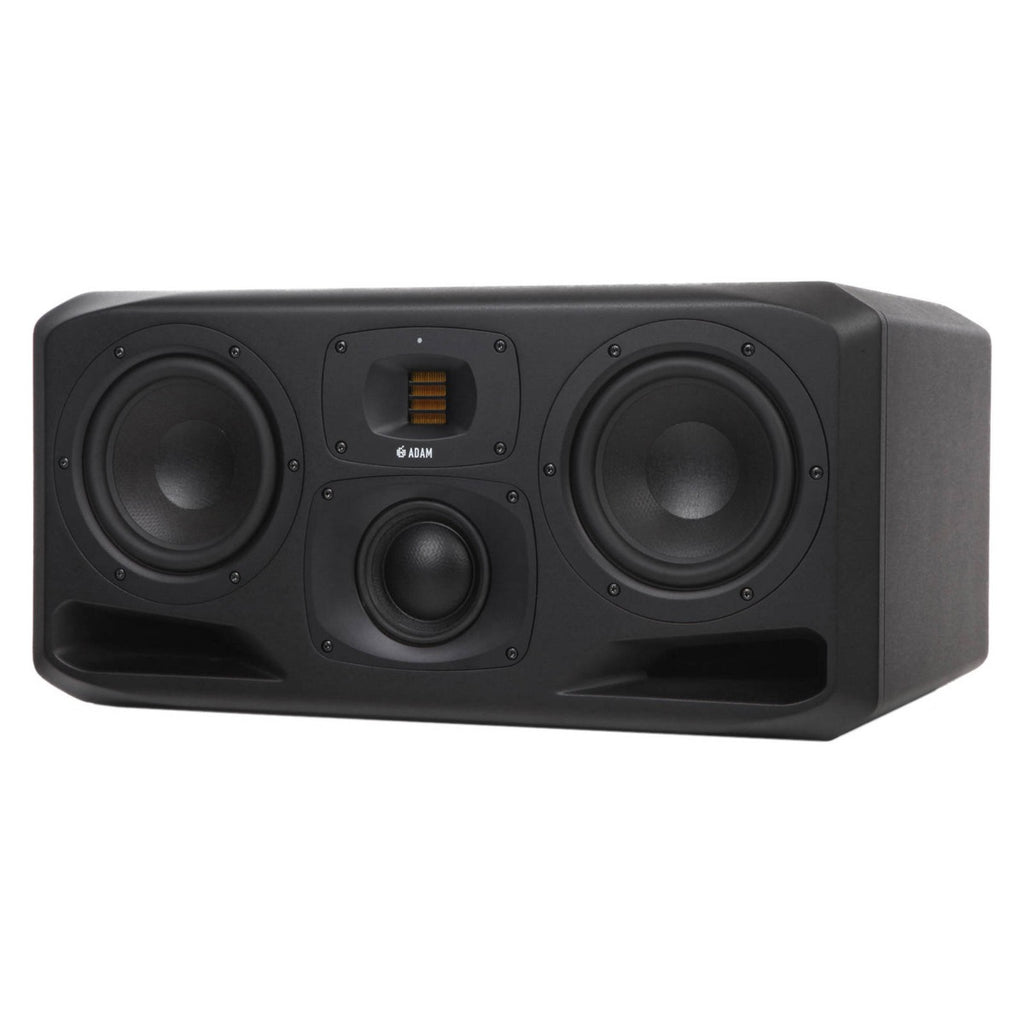

ADAM Audio S3H – Horizontal 3‑Way Midfield Monitor with DSP & Dual 7″ Woofers

Engineered for medium-to-large control rooms, the ADAM Audio S3H delivers stunning clarity, deep bass, and razor-sharp imaging in a horizontal DSP-powered design. Featuring dual 7″ woofers, a 4″ midrange, and the new S‑ART tweeter, it’s built for precision and scale—now at Soundium.

Key Features

• Dual 7″ ELE™ woofers with SMA™ magnets: Provide powerful, low-distortion bass down to 30 Hz
• 4″ DCH midrange driver: Hybrid dome/cone design ensures articulate and natural mid frequencies
• S-ART folded-ribbon tweeter with HPS waveguide: Handcrafted in Berlin, it offers clean highs up to 50 kHz and a wide listening sweet spot
• Quad-amplified DSP engine: 500 W per woofer, 300 W midrange, 50 W tweeter, with customizable crossovers and room EQ via onboard DSP
• Horizontal three-way layout: Designed for midfield use or soffit mounting, offering stable stereo imaging

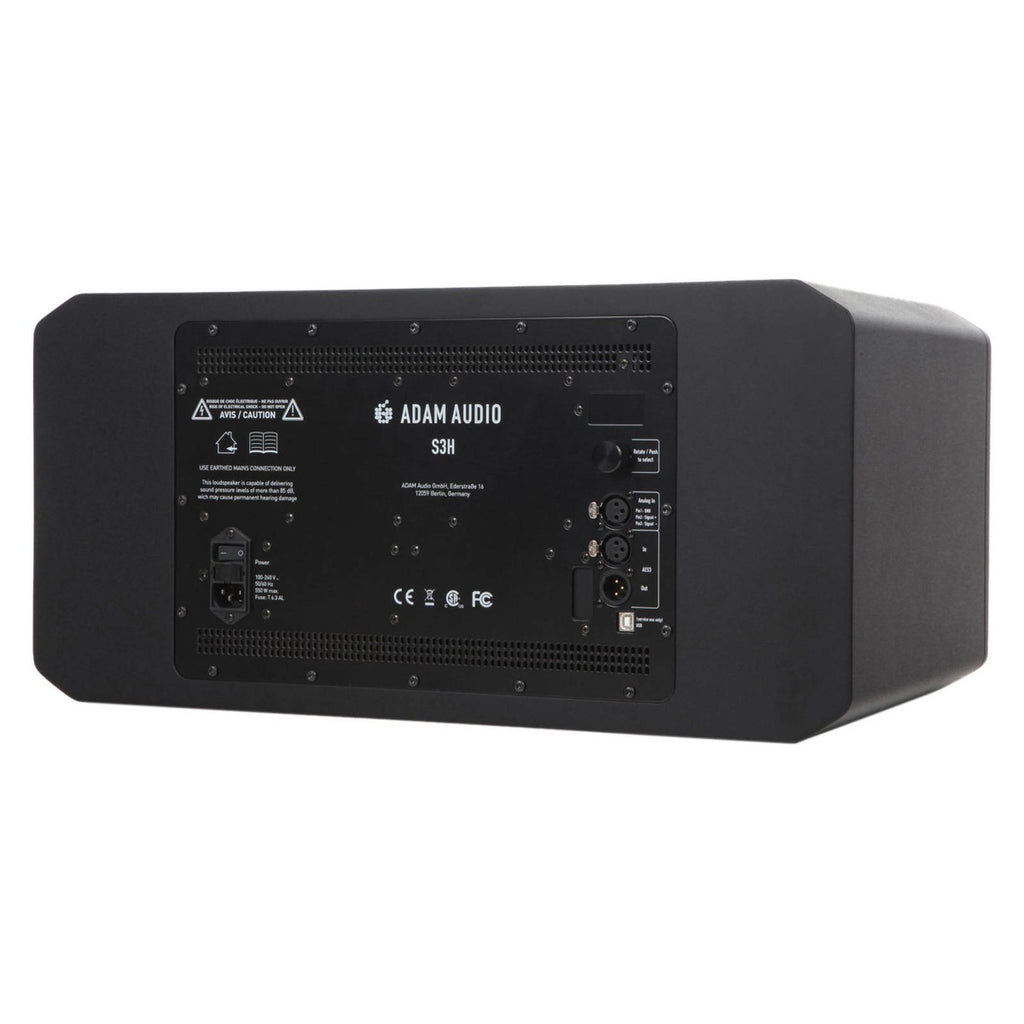

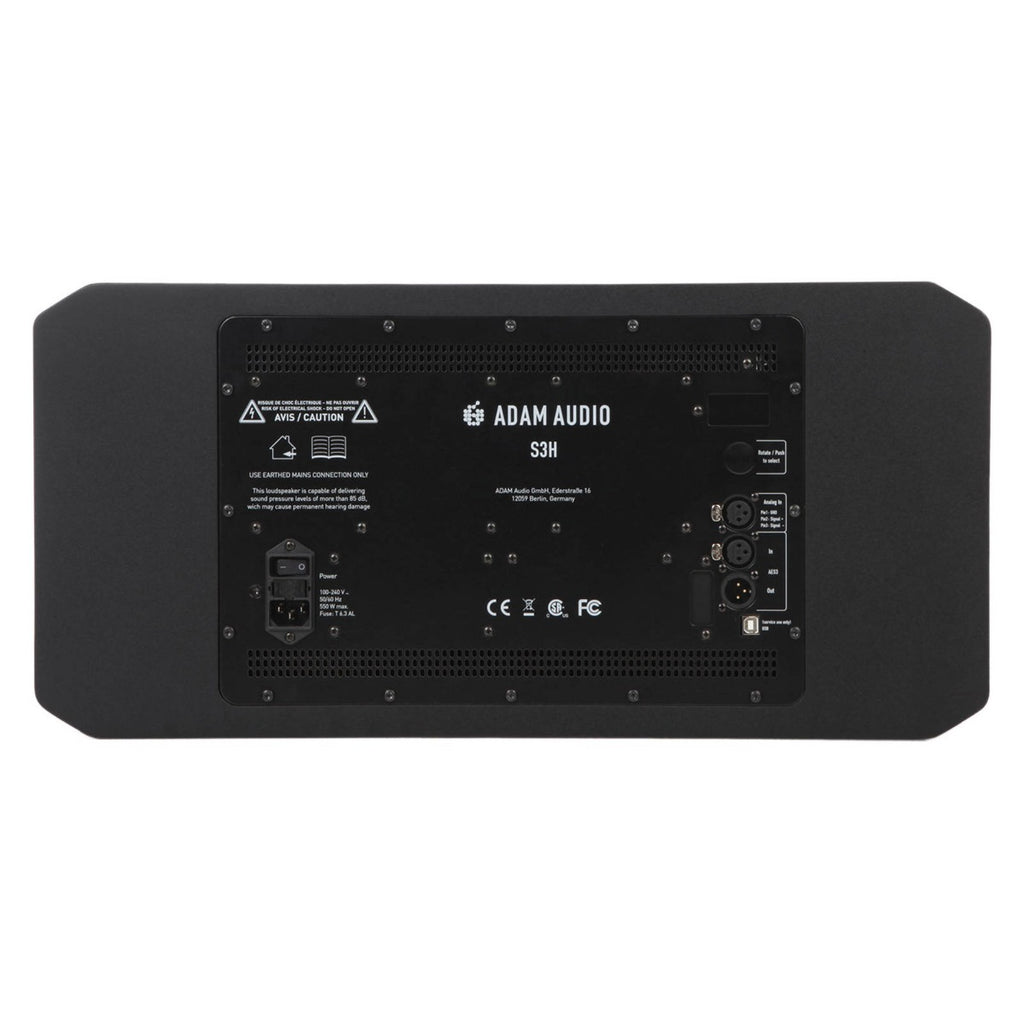

• Balanced analog XLR and AES3 digital I/O: Supports digital workflow and software-based DSP updates

Customer Benefits

The S3H combines reference-grade detail with effortless adaptability. Its DSP tuning simplifies room calibration, while the dual woofers and advanced mid/tweeter drivers give you tight low-end, expressive mids, and airy highs. Whether mixing, mastering, or crafting immersive audio, this monitor gives you confidence at scale.

Quick Specs

• Drivers: 2 × 7″ ELE woofers, 4″ DCH midrange, S‑ART tweeter
• Frequency response: 30 Hz–50 kHz
• Amplification: 2 × 500 W (LF), 300 W (MF), 50 W (HF)
• Crossover: 250 Hz, 3 kHz
• Max SPL: ≥126 dB pair @1 m
• Inputs: 1× analog XLR, 1× digital AES3, USB for DSP control
• Power: IEC, max consumption 550 W
• Dimensions: 28 × 59 × 38 cm
• Weight: 26.6 kg
• Warranty: 5 years (2 years standard + 3 with registration)

What’s in the Box

• ADAM Audio S3H powered midfield monitor (single unit)
• IEC power cable
• Quick start guide & warranty documentation

Use Cases / Ideal For

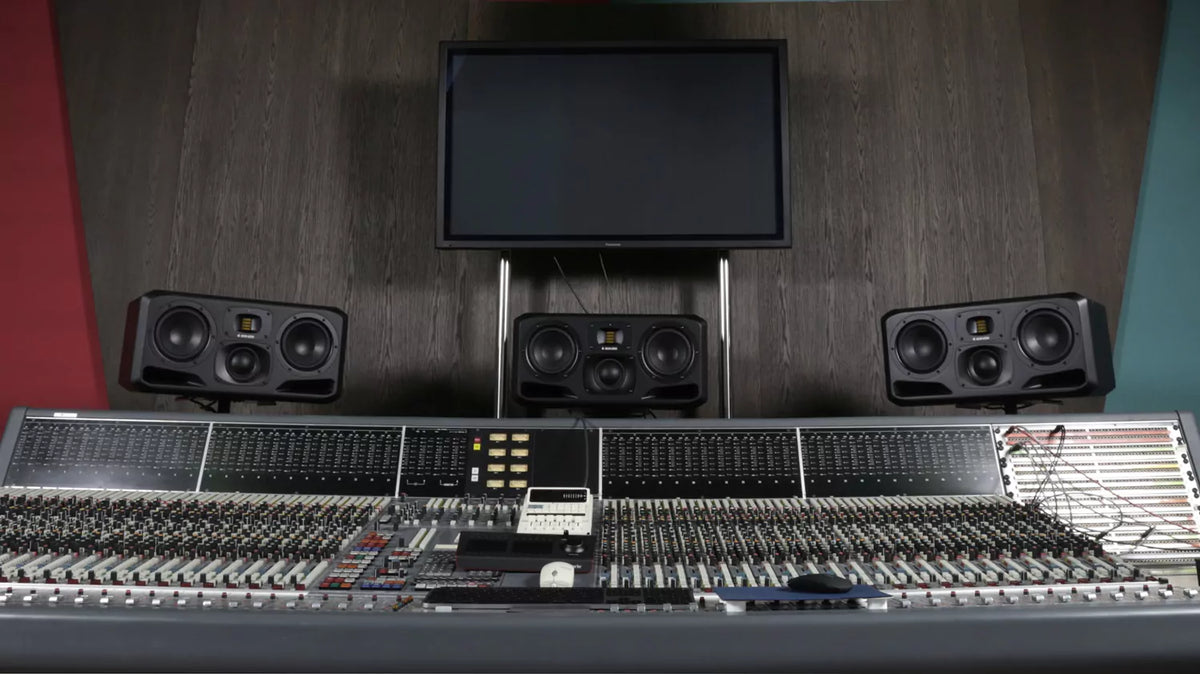

Designed for midfield mixing, mastering, and immersive audio setups in studios, post-production, broadcast, and educational environments seeking clarity and power.

Compatibility

Integrates with interfaces and DAWs via analog XLR or digital AES3. DSP control via USB allows firmware updates and room correction. Pairs seamlessly with ADAM subs and supports soffit or horizontal mounting.

Pros & Cons

✅ Pros:

• Deep, punchy bass from dual woofers with low distortion
• Midrange clarity and stereo imaging praised by professionals
• Airy detailed highs without sibilance
• Flexible DSP room tuning and future firmware updates

⚠️ Cons:

• Large size and weight require sufficient studio space
• Rear-panel DSP controls could be inconvenient in soffit setups

The ADAM Audio S3H offers unmatched detail, imaging, and power for critical listening environments—ready to elevate your studio—only at Soundium.
