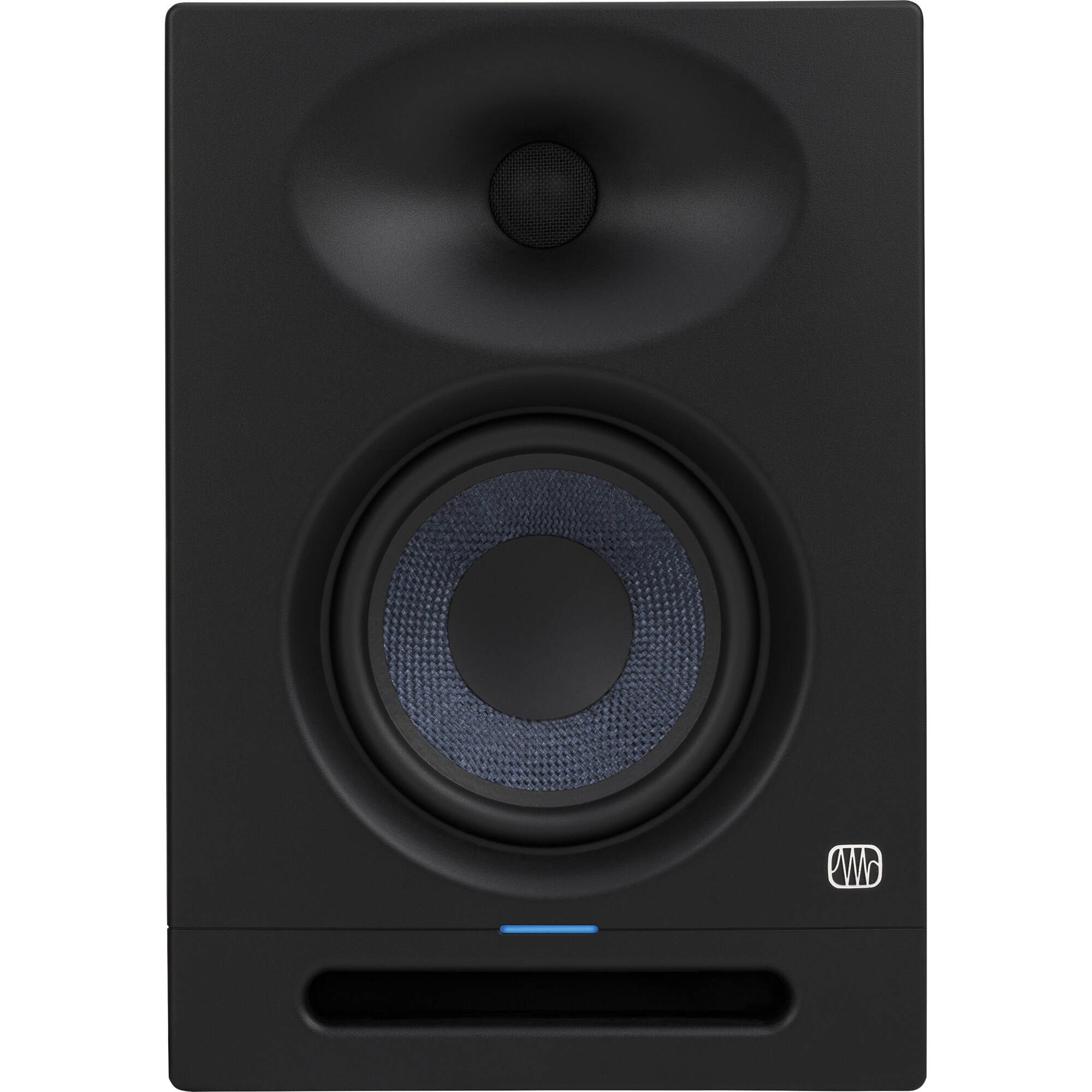

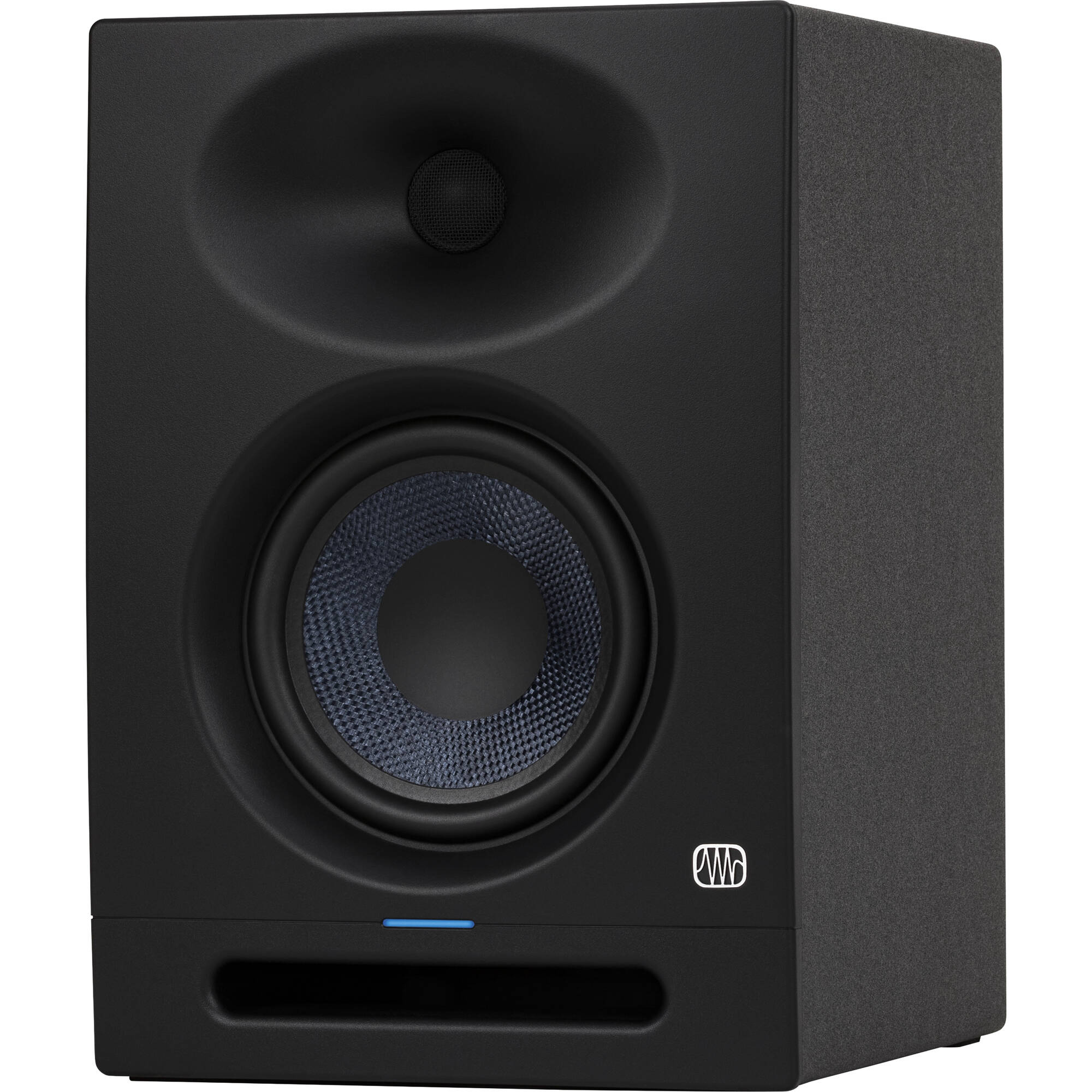

PreSonus Eris Studio 5 – Compact 5.25″ Studio Monitor with Wide Sweet Spot

The PreSonus Eris Studio 5 delivers detailed sound and punchy low-end in a compact design. Its EBM waveguide expands the sweet spot horizontally to 120° while reducing vertical reflections, and its tunable acoustic controls let you adjust output to suit challenging acoustic environments—precision monitoring made effortless at Soundium.

Key Features

• EBM (Elliptical Boundary-Modeled) waveguide: Enhances high-frequency response and widens the sweet spot (120° horizontal × 60° vertical), while reducing desk reflections.
• 5.25″ woven-composite woofer & 1″ silk-dome tweeter: Combined with front-firing port and internal bracing, achieves clear bass down to 48 Hz and crisp highs.
• 80 W Class-AB bi-amplification: 45 W for low frequencies and 35 W for high frequencies ensures balanced, dynamic performance up to ~102 dB SPL.
• Acoustic tuning controls: Includes Acoustic Space (Flat, –2 dB, –4 dB), High-Frequency ±6 dB (centered at 10 kHz), Mid-Frequency ±6 dB (centered at 1 kHz), and Low-Cut filter (flat, 80 Hz, 100 Hz @ −12 dB/octave).

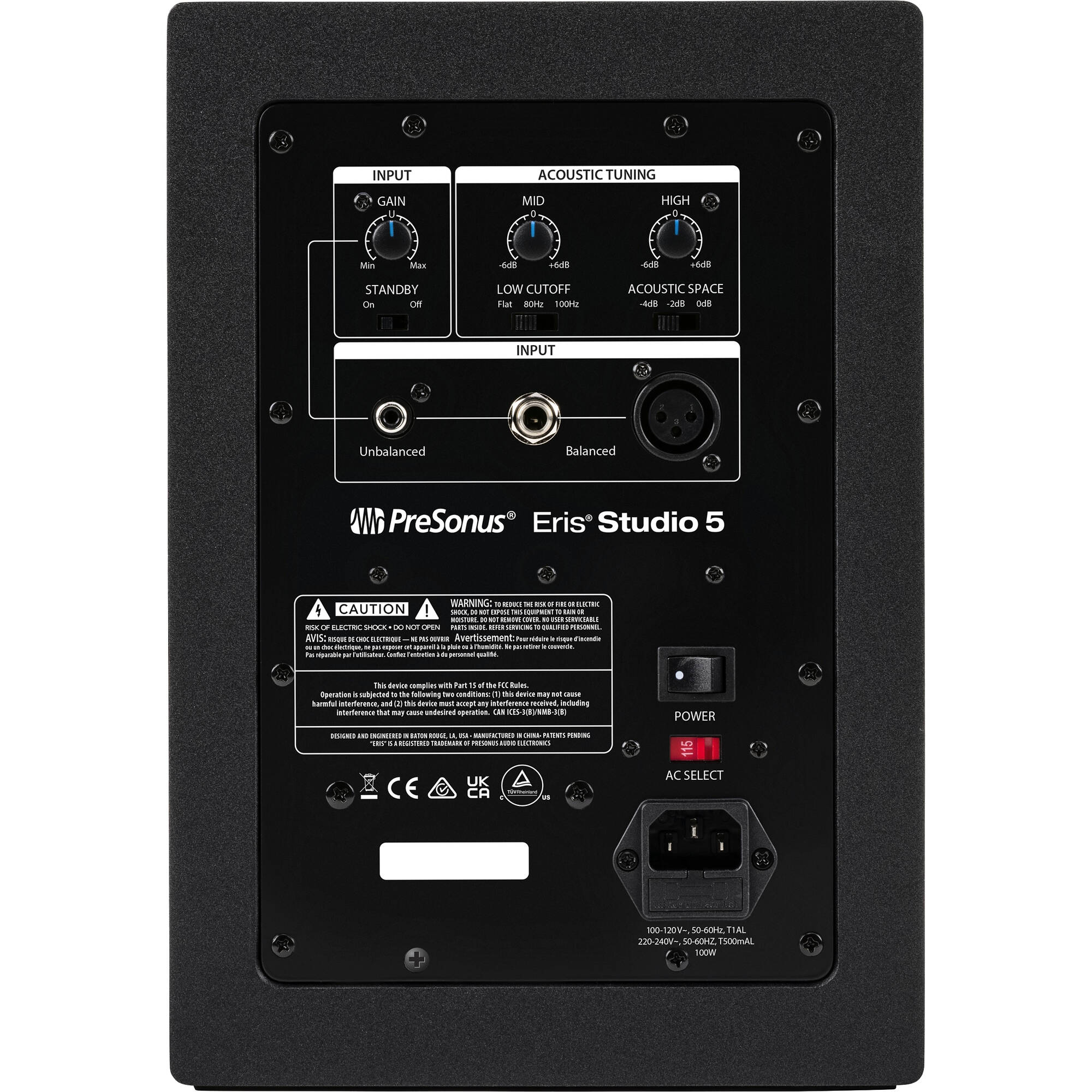

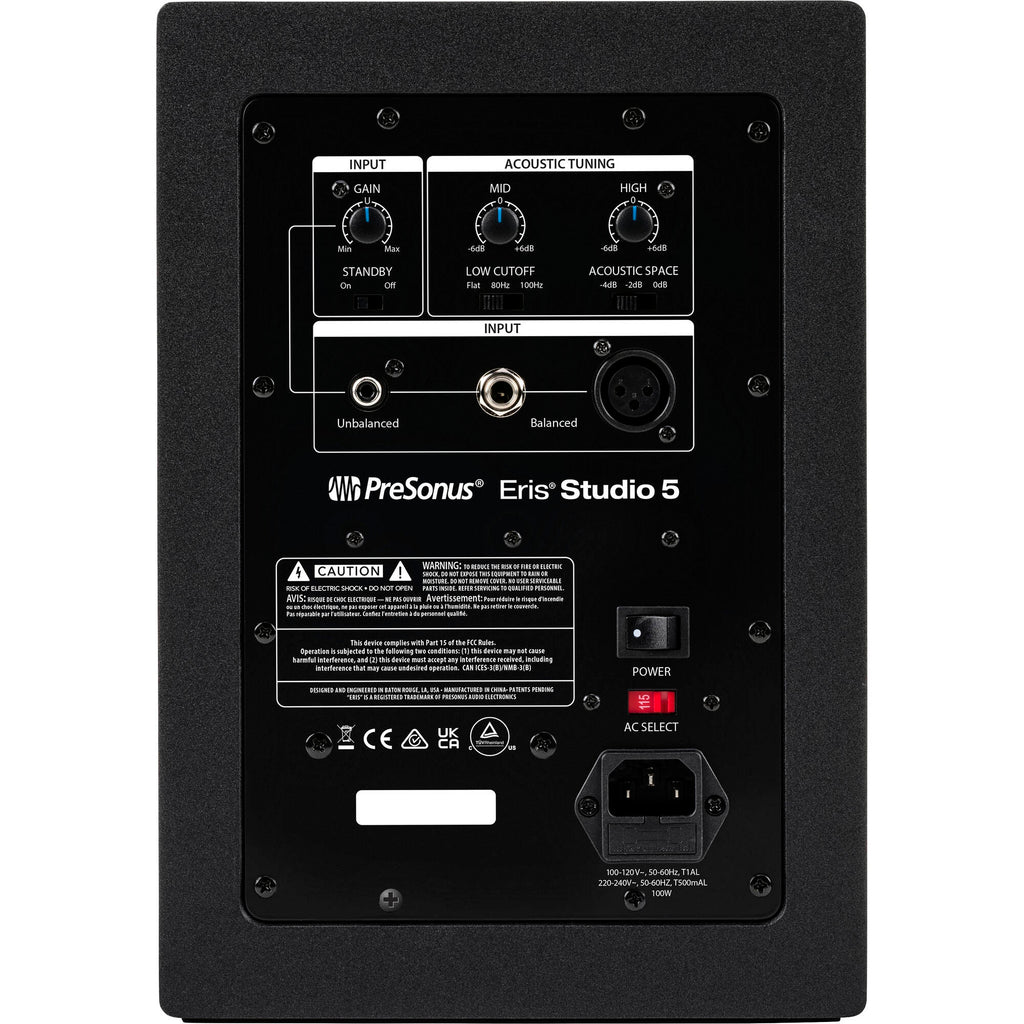

• Flexible connectivity: Balanced XLR and ¼″ TRS, and unbalanced RCA inputs for versatile setup options.
• Comprehensive protection suite: Includes RF filtering, output-current limiting, over-temperature protection, turn-on/off transient protection, subsonic filter, and power-saver mode after 40 minutes.

Customer Benefits

Whether you're mixing in a tight desk environment or working in a small studio, the Studio 5 adapts to your space. The waveguide keeps your mix consistent even when you move, and acoustic tuning lets you counteract boundary bass or midrange peaks without extra gear—so you can focus fully on the sound.

Quick Specs

• Drivers: 13.3 cm woven-composite woofer; 25 mm silk-dome tweeter
• Amplification: 80 W total — 45 W LF, 35 W HF (Class AB)
• Frequency response: 48 Hz – 20 kHz
• Peak SPL: ~102 dB @ 1 m
• Crossover frequency: 3.5 kHz
• Acoustic tuning: Acoustic Space, HF/MF ±6 dB, Low-Cut switch
• Inputs: XLR, ¼″ TRS (balanced), RCA (unbalanced)
• Protections: RF, current, thermal, transient, subsonic, plus power saver
• Dimensions: Around 19 cm × 30 cm × 24 cm (H × W × D)
• Weight: Approx. 5.2 kg

What’s in the Box

• PreSonus Eris Studio 5 active studio monitor (single)
• IEC power cable

Use Cases / Ideal For

Perfect for home studios, desktop mixing, and creative setups where space is limited but accuracy matters. Ideal when clarity, adaptability, and flexibility in monitoring are essential.

Compatibility

Works with any audio interface, mixer, or playback system via balanced or unbalanced inputs. Acoustic tuning and waveguide design make it especially adaptable to near-field monitoring and immersive mixing setups.

Pros & Cons

✅ Pros:

• Wide sweet spot and reduced desk reflection from EBM waveguide
• Tight, punchy bass and crisp highs in a compact cabinet
• Acoustic tuning tools let you shape sound to your room quickly
• Versatile inputs meet most setup requirements

⚠️ Cons:

• Rear-mounted controls require good access to the back of the monitor
• No built-in subwoofer output; deep bass may need external sub

The PreSonus Eris Studio 5 brings powerful, tunable audio precision to compact spaces, with intuitive controls and broad imaging that enhance any creative environment—available now at Soundium.
