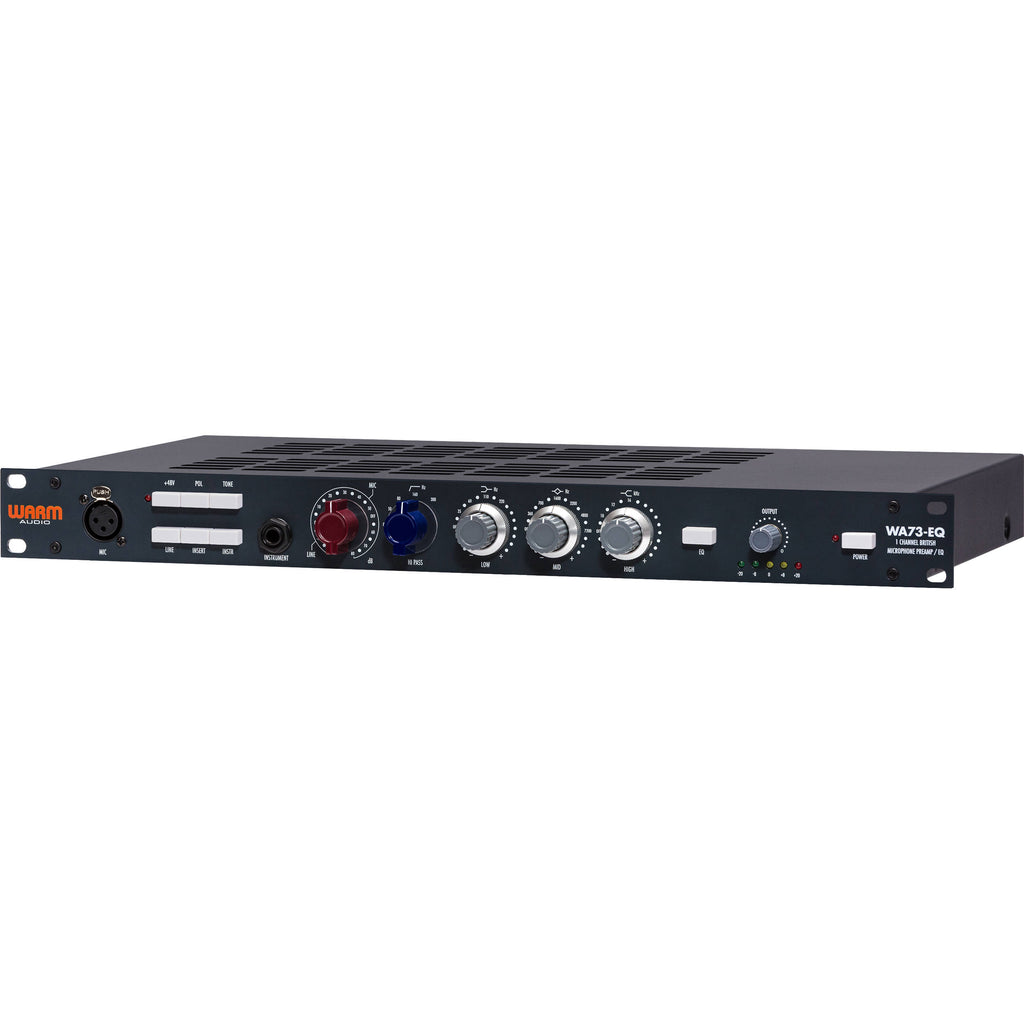

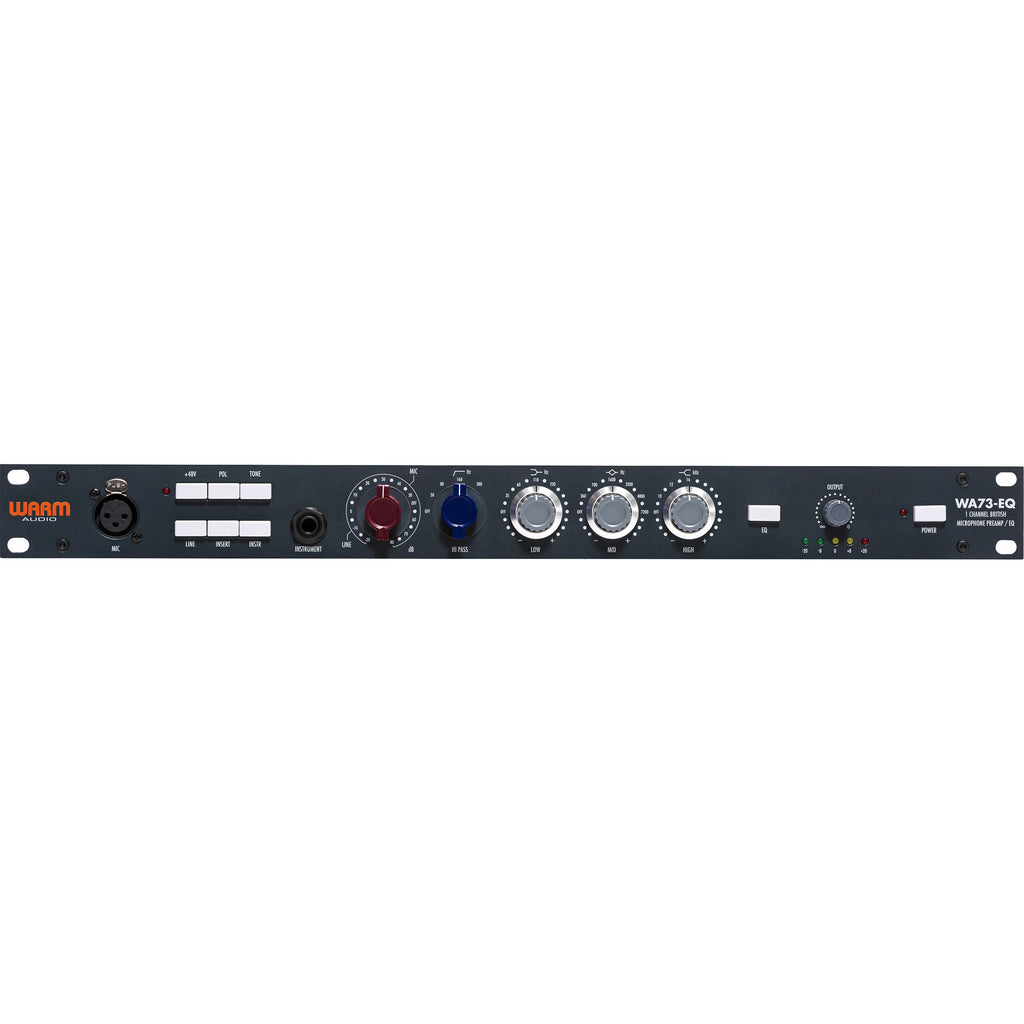

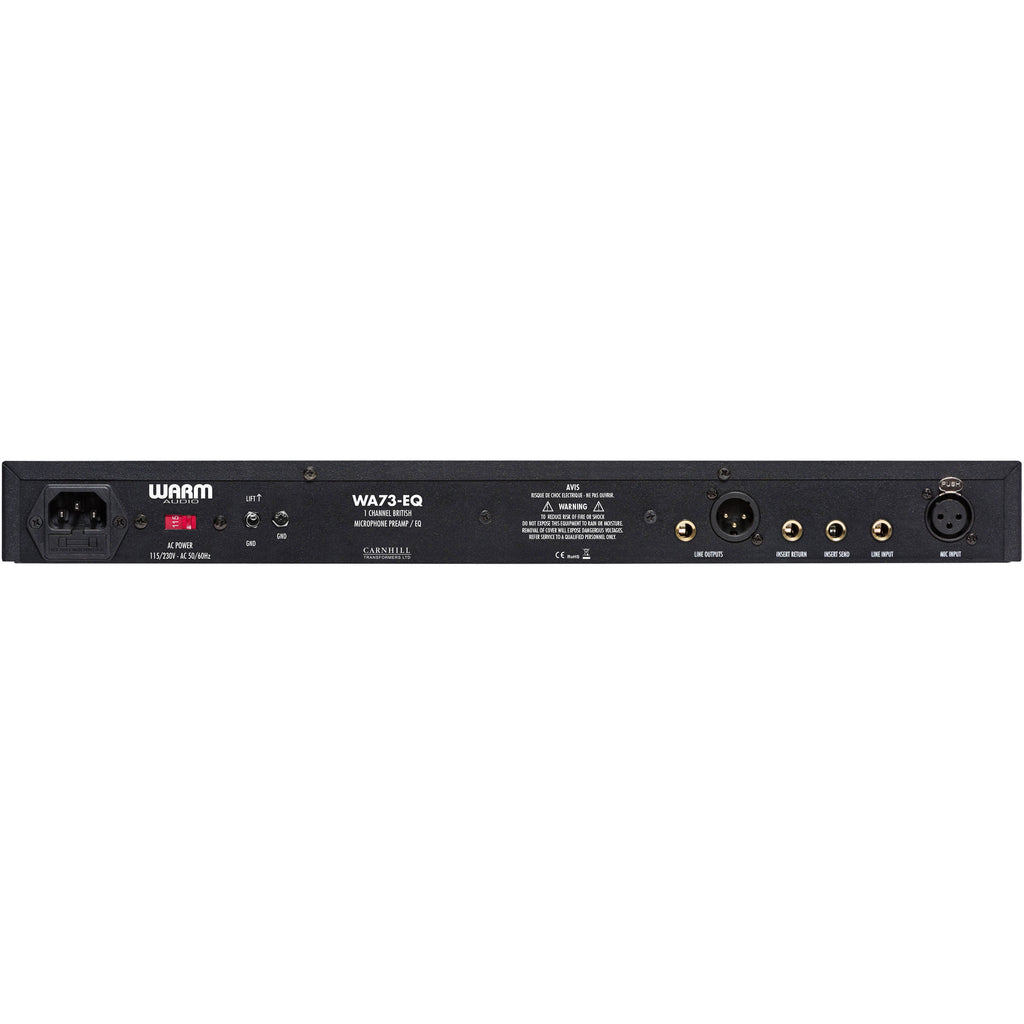

Warm Audio WA-73EQ – Single-Channel British-Style Preamp with 3-Band EQ

The Warm Audio WA-73EQ brings the sound of classic British console preamps into a modern studio environment. With rich Class-A tone, up to 80 dB of gain and a fully featured inductor-based EQ, it’s designed for vocal tracking, instruments and creative shaping in both project and professional studios at Soundium.

Key Features

• Up to 80 dB of gain: Drives low-output dynamic and ribbon microphones with ease while maintaining warmth and clarity.
• Class-A transformer-balanced design: Custom Carnhill input and output transformers recreate the musical character of vintage British studio gear.
• Inductor-based 3-band EQ: Low shelving at 35/60/110/220 Hz, mid peaking at 360/700/1.6k/3.2k/4.8k/7.2k Hz, and high shelving at 10/12/16 kHz.
• Selectable high-pass filter: Choose between Off, 50, 80, 160 or 300 Hz to remove unwanted low frequencies before amplification.
• Versatile inputs and routing: Includes mic input, line input, front-mounted instrument input and insert send/return loop.
• Tone switch and impedance control: Adjusts transformer input impedance for added presence or smoother response depending on the microphone.

Customer Benefits

The WA-73EQ delivers the warmth, punch and musicality of vintage British consoles while adding modern practicality. With its wide gain range, detailed EQ and flexible I/O, it works equally well for vocals, guitars, drums and keys. The built-in high-pass filter and impedance options offer quick tonal shaping, making it an efficient front-end solution for studios at Soundium.

Quick Specs

• Gain: Up to 80 dB
• Frequency response: 20 Hz–20 kHz (±0.5 dB)
• Noise floor: approx. –111 dBu
• High-pass filter: Off / 50 / 80 / 160 / 300 Hz
• Low EQ: 35 / 60 / 110 / 220 Hz
• Mid EQ: 360 / 700 / 1.6k / 3.2k / 4.8k / 7.2k Hz
• High EQ: 10 / 12 / 16 kHz
• Dimensions: 48.3 cm (19″ rack) × 4.45 cm (1U height)

What’s in the Box

• Warm Audio WA-73EQ preamp
• IEC power cable
• User documentation

Use Cases / Ideal For

Perfect for vocal tracking, guitars, bass, keyboards, drum overheads and room mics. Ideal as a high-quality front end for recording chains or for adding analog color to digital setups.

Compatibility

Fits any standard 19″ rack. Works with microphones, line-level sources and instruments. Provides balanced outputs and a full insert loop for integrating compressors or other outboard gear.

Pros & Cons

✅ Pros:

• Authentic British-style tone with premium Carnhill transformers
• Flexible 3-band EQ and high-pass filter built in
• Wide gain range suitable for all microphone types

⚠️ Cons:

• Single-channel design means two units are needed for stereo work
• Advanced controls may take time to master for beginners

The Warm Audio WA-73EQ brings classic console flavor and modern versatility into one powerful rack unit. For studios seeking rich tone, flexible shaping and professional-grade preamplification, it’s a strong choice at Soundium.
